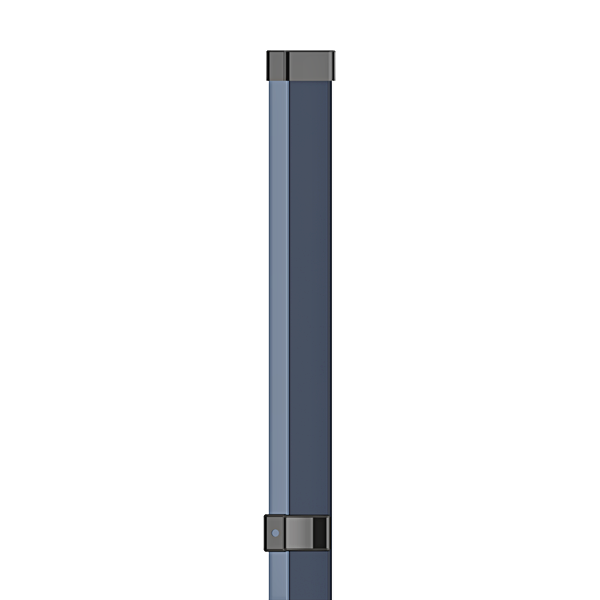

BF2 90A - Height Photocell Receiver
| Model | BF2 90A |
| Product Code | K158-01 |
| Operating Voltage | 15-40V DC |
| Operation Current | 100mA @24V DC |
| Maximum Response Time (Linear/Cross Mode) | 88ms / 155ms |
| Maximum Operating Distance | 16m* |
| Minimum Relay Withdrawal Time | 500ms |
| Infrared Signal Frequency | 38kHz |
| Operating Temperature | -20 oC +55 oC |
| Contact Type | Dry Contact NO / NC |
| Maximum Contact Capacity | 60V DC 100mA, 42V AC 100mA |
| Weight | 1450gr |
| Dimensions (Width x Length x Depth) | 3.6 x 92 x 1.3cm |
*Maximum operating distance is tested indoors. This value may vary according to weather and environmental conditions.
Description
BF2 height photocell is a product designed as receiver and transmitter units working with infrared communication protocol and generally used for safety purposes. Currently, there are two different models of height photocell in our production, 90 CM and 180 CM.
Areas of Use;
- Shutter systems
- Roller shutter applications
- Industrial door and fast pvc door systems
- Safety barriers
- Elevator systems
