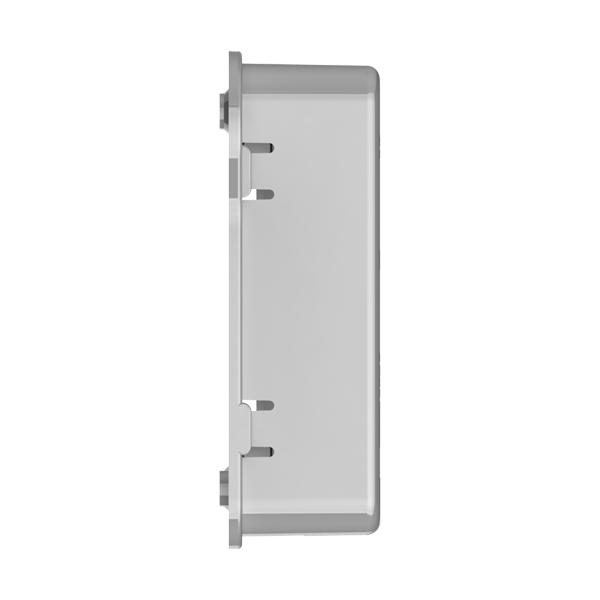

EPA - Roller Shutter Opener

Model : EPA
Product Code : K175-01
Operating Voltage : 220V AC 50 Hz
Operation Current : 10mA @220V
Operating Frequency : 433.92MHz
Contact Type : 220V AC
Max. Contact Power : 250V AC 10A
Max. Contact Withdrawal Time : 120sec
Automatic Learning : û
External Button Input : û
Control Capacity :  50
Weight : 105g
Dimensions (Width x Length x Depth ) : 82.5 x 108.5 x 35mm
SKU: K175-01 Category:
Description

EPA roller shutter opener is a motor driver card that works with our company's EVS3 series controls. It is used for controlling 2-way 3-ended (Direction1, Direction2, Common End) motors used in roller shutter and shutter systems.


Turkish User Manual
