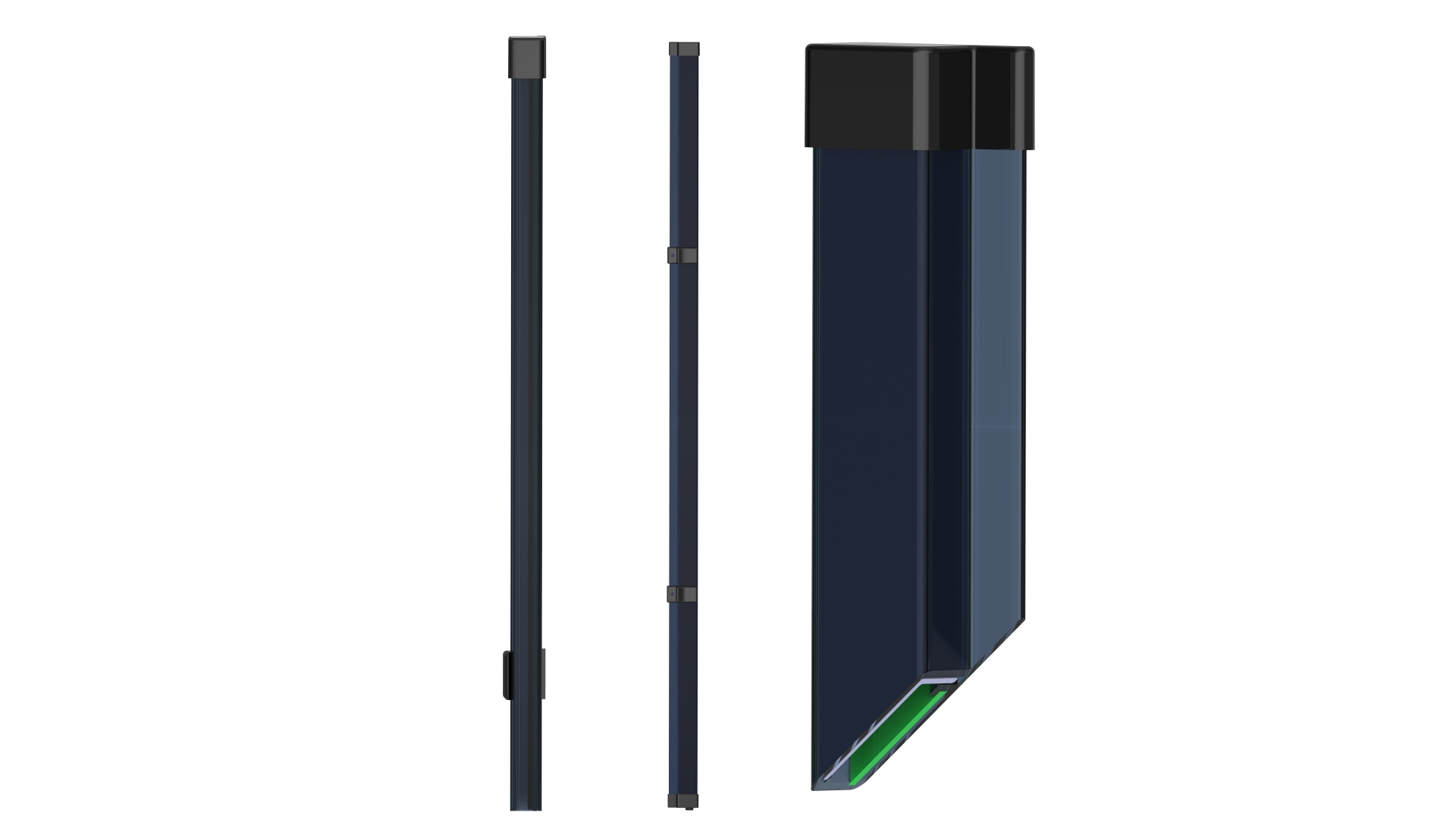

BF2 180A – 180cm Light Curtain Receiver

Model	BF2 180A
Product Code	K160-01
Working Voltage	12-24V AC / 15-40V DC
Working Current	100mA @24V DC
Max. Reaction Time (Linear / Cross Mode)	125ms / 270ms
Max. Working Distance	16m*
Min. Contacting Time	500ms
Infrared Frequency	38kHz
Working Temperature	-20 ^oC +55 ^oC
Contact Type	Dry Contact NO / NC
Max. Contact Power	60V DC 100mA, 42V AC 100mA
Weight	2550gr
Dimensions (Width x Length x Depth)	3,6 x 182 x 1,3cm

*Maximum operating distance tested indoors. The operating distance of the product varies slightly depending on weather conditions and environments.

Category: Photocell Tags: Awning Door, Glass Door, SAFETY SYSTEM

Description

Light Curtain (BF2) is a product that operates using an infrared communication protocol and is typically used for safety purposes. It is available in two models: BF2 90 (90 cm) and BF2 180 (180 cm).
